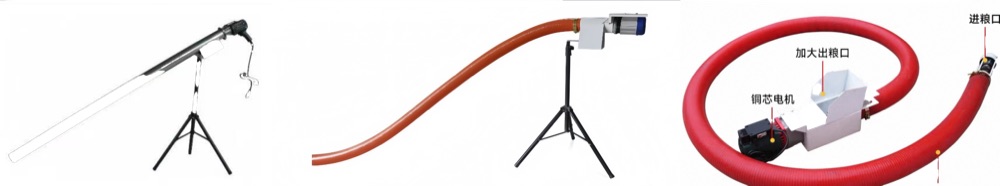

Electric-Drill Grain Suction Machine
Flexible-shaft suction conveyer powered by your electric drill — 4 to 12 m lengths.
- Power
- 2800–4500 W drill (by length)
- Capacity
- 4–12 m conveying distance

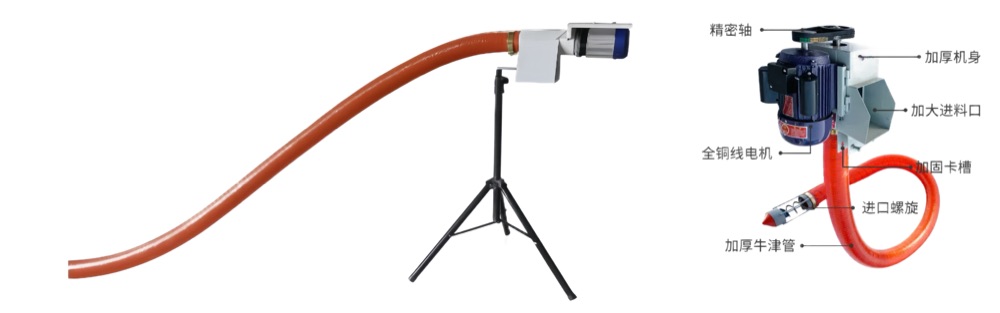

Motor-Type Grain Suction Machine (Single-Drive & Mid-Drive)
Self-powered suction conveyers — single-drive up to 12 m, mid-drive up to 30 m.
Model Ø100 / Ø120
Grain Suction & Conveying
Key Specifications
- Power3–4.5 kW (by size)
- Capacity5–30 m conveying distance
- WeightBy configuration
Ships in 7–15 working days · Plywood export case · 12-month warranty
Product Description
The motor-type suction machines carry their own single-phase or three-phase motors: no drill needed. Single-drive units cover 5 to 12 m, while mid-drive units place the motor in the middle of the tube for long 15–30 m runs.
They move grain, feed pellets, sawdust, sand, fly ash and plastic granules — anywhere granular material must be lifted or transferred.
Single-drive version
| Size | Single-Phase Motor | Three-Phase Motor |
|---|---|---|
| Ø100 × 5 m | 3000 W | 3000 W |
| Ø100 × 6–8 m | 4000 W | 3000 W |
| Ø100 × 9–12 m | 4500 W | 4000 W |
| Ø120 × 5–6 m | 4000 W | 3000 W |
| Ø120 × 7–12 m | 4500 W | 4000 W |
Mid-drive version — motor at the middle of the tube
| Size | Available Lengths |
|---|---|
| Ø100 | 15 m / 20 m / 25 m / 30 m |
| Ø120 | 15 m / 20 m / 25 m / 30 m |
Main Features
- Self-contained motors — single or three phase
- Mid-drive layout for 15–30 m long-distance conveying
- Handles grain, pellets, sawdust, sand, fly ash, plastic granules
- Ø100 and Ø120 tubes with many length options
Typical Applications
Grain depot turnover and truck loadingFlour mill and feed plant feedingCement plants, power plants (fly ash), construction sites
