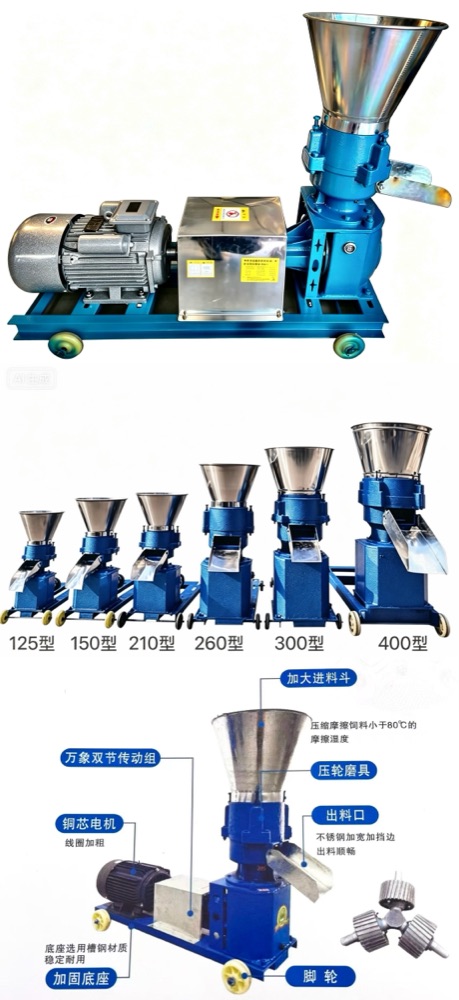

Feed Pellet Mill — Differential Version (Rotary Disc)
Rotary-disc differential press with car rear-axle differential — 8 models, 70–1,000 kg/h.
- Power
- 4–30 kW (by model)
- Capacity
- 70–1,000 kg/h
Feed Pellet Mill — Reducer Version
Reducer-driven flat-die pellet press from 300 to 2,000 kg/h — five model sizes.
Model 200 / 210 / 260 / 300 / 400
Feed Pellet Mills
Key Specifications
- Power4–45 kW (by model)
- Capacity300–2,000 kg/h
- Weight75–600 kg (by model)
Ships in 7–15 working days · Plywood export case · 12-month warranty
Product Description
The reducer-version pellet press drives the die through a hardened gearbox, giving steady torque and long die life. Five models cover everything from household feed making (300 kg/h) to farm-scale production (2,000 kg/h).
The enlarged feed hopper, chromium-manganese steel quenched press rollers and enlarged discharge outlet come standard across the range.
Model specifications — Reducer version
| Parameter | Model 200 | Model 210 | Model 260 | Model 300 | Model 400 |
|---|---|---|---|---|---|
| Dimensions (L×W×H, cm) | 100×30×74 | 100×30×76 | 103×48×110 | 122×55×116 | 145×55×143 |
| Output (kg/h) | 300 | 300 | 400 | 750 | 2000 |
| Voltage (V) | 380 | 380 | 380 | 380 | 380 |
| Weight (kg) | 75 | 85 | 320 | 550 | 600 |
| Power (kW, 4-pole) | 4 | 7.5 | 15 | 30 | 45 |
| Water addition (kg) | 0–2 | 0–2 | 0–3 | 0–3 | 4–6 |
Main Features
- Enlarged feed hopper for convenient feeding
- Chromium-manganese steel press rollers, high-temperature quenched
- Enlarged discharge outlet for faster output
- Hardened reducer drive for steady torque and die life
Typical Applications
Household to farm-scale feed productionSmall feed millsLivestock farms
Related Machines
Customers also viewed

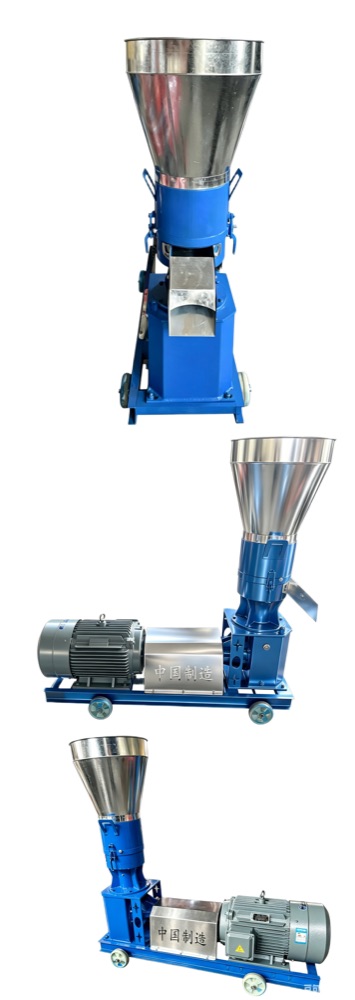

Feed Pellet Mill — Differential Version (Rotary Roller)
